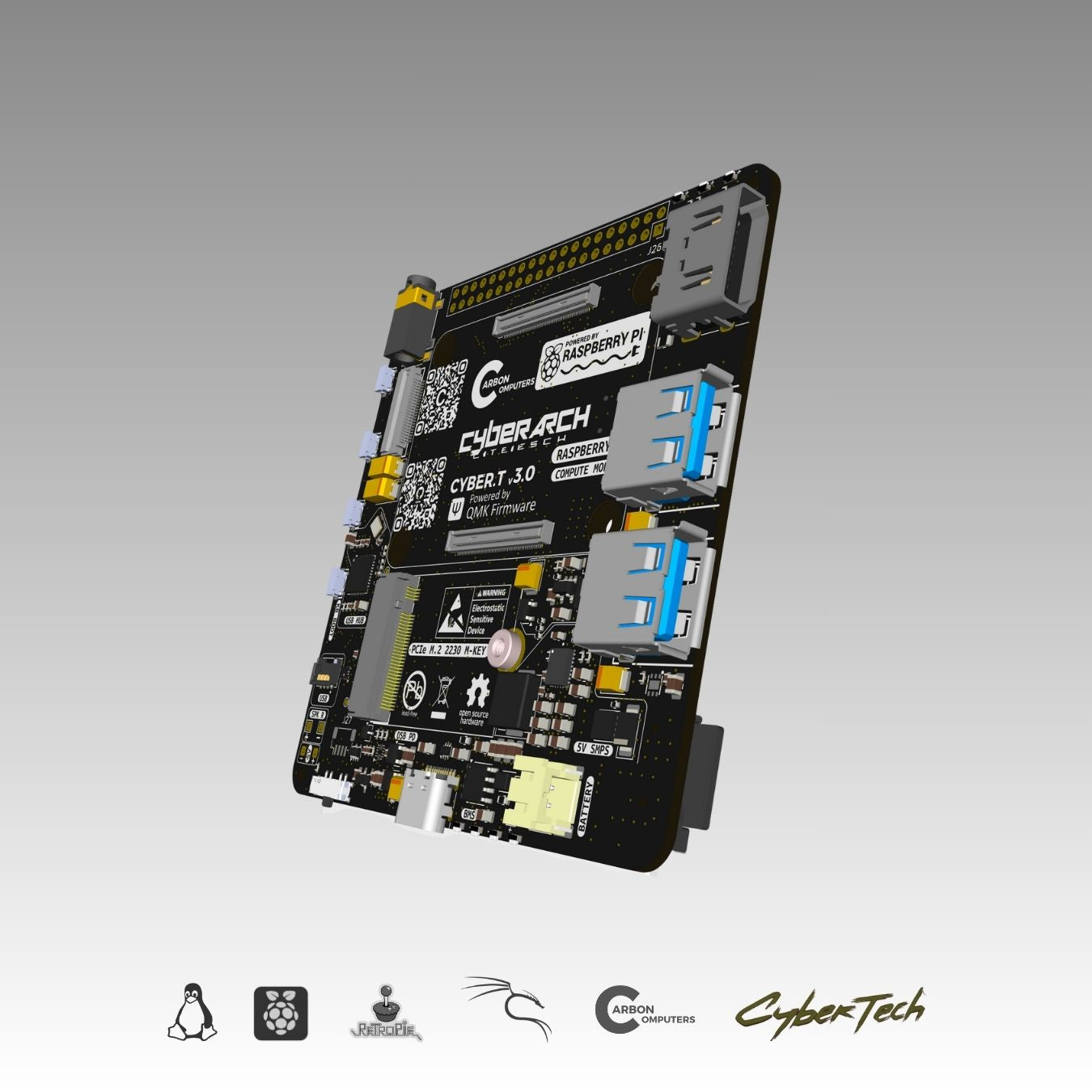

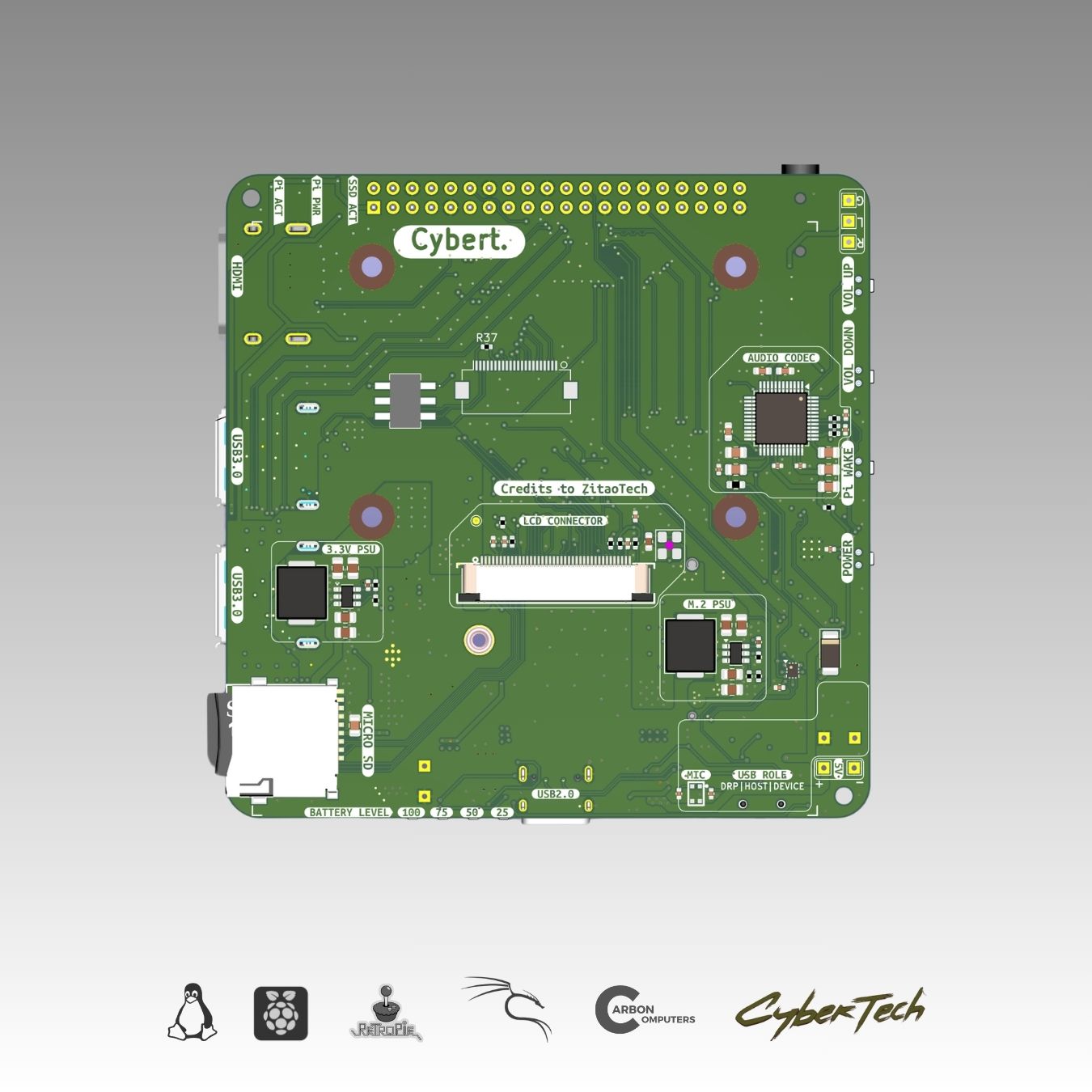

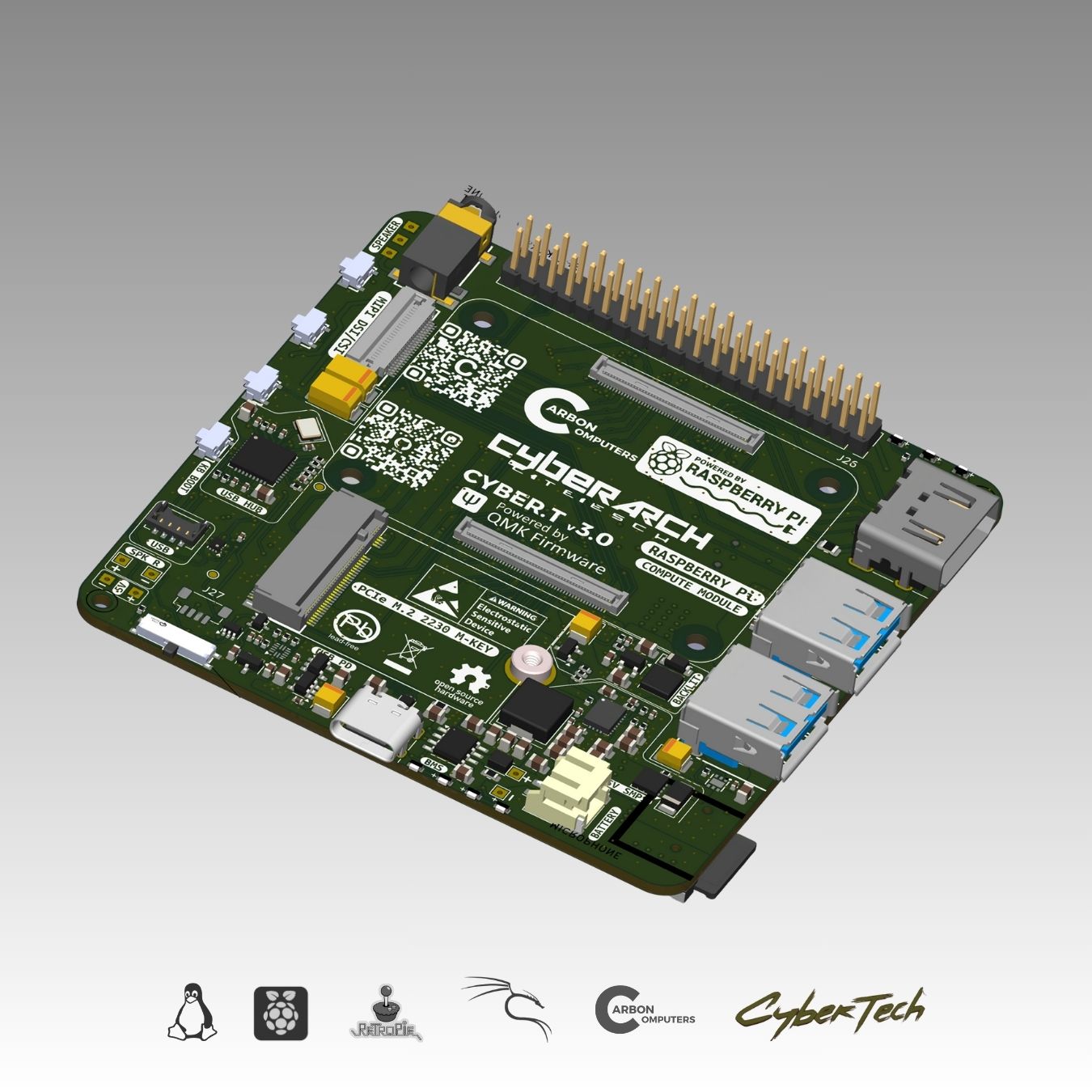

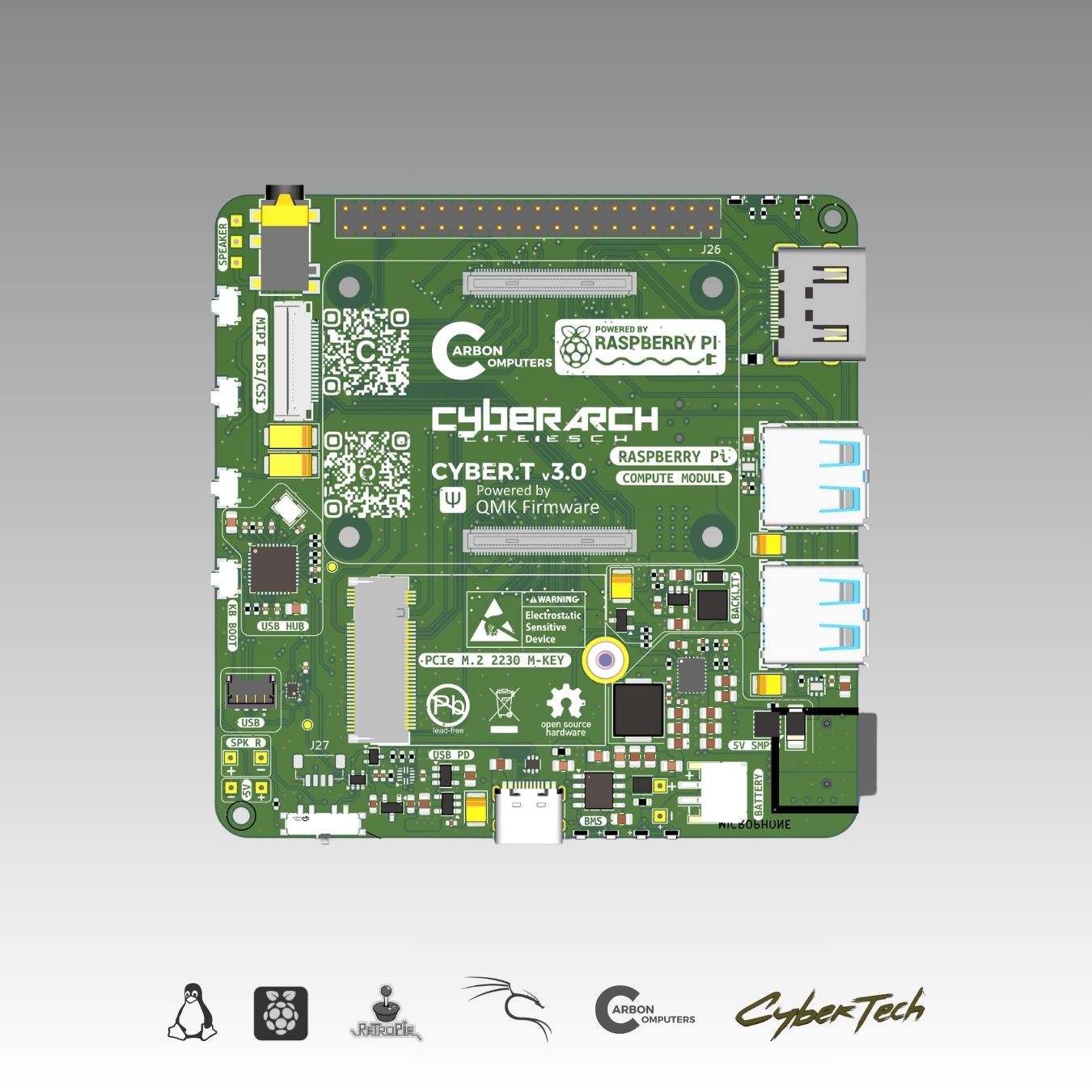

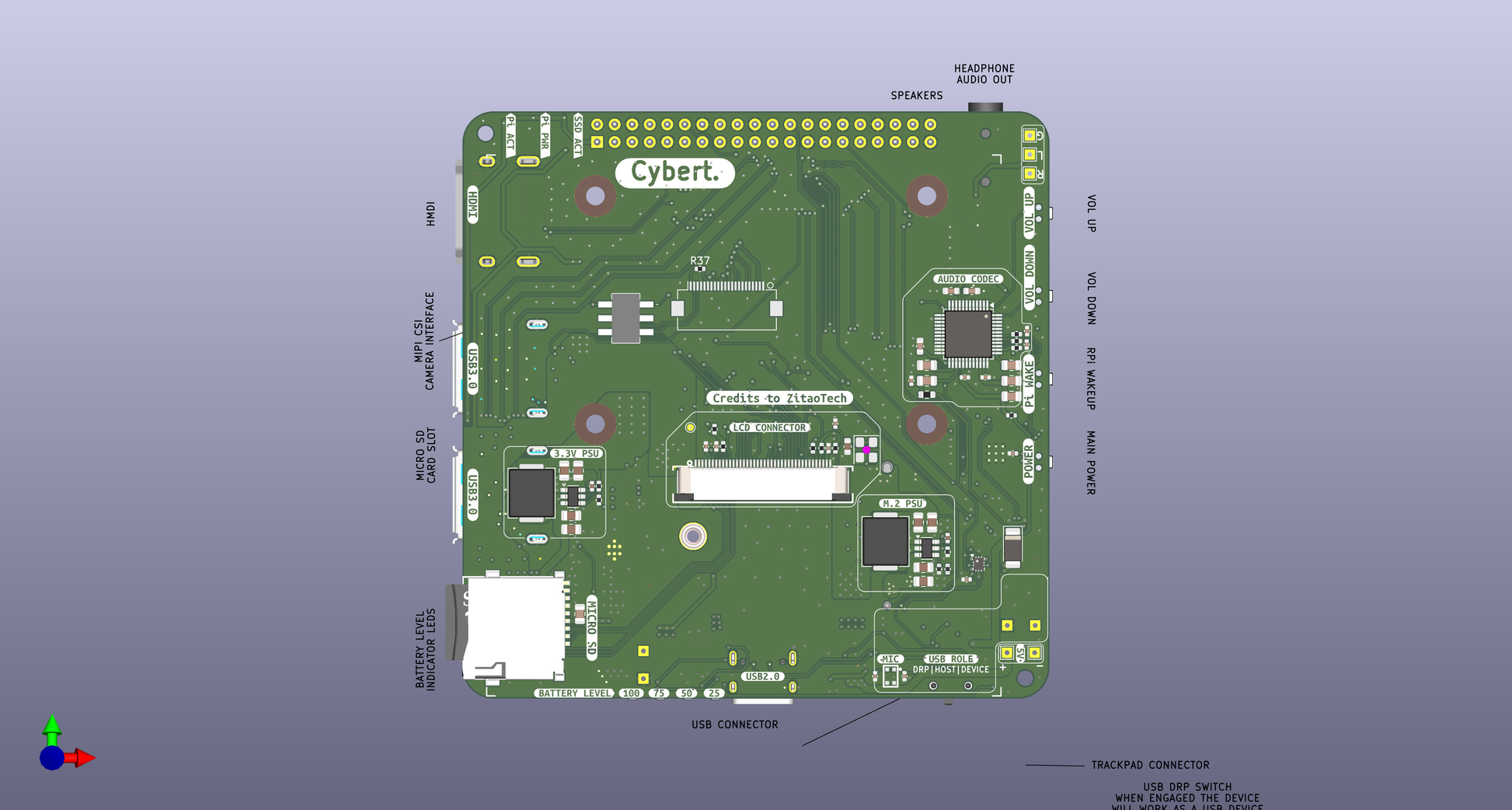

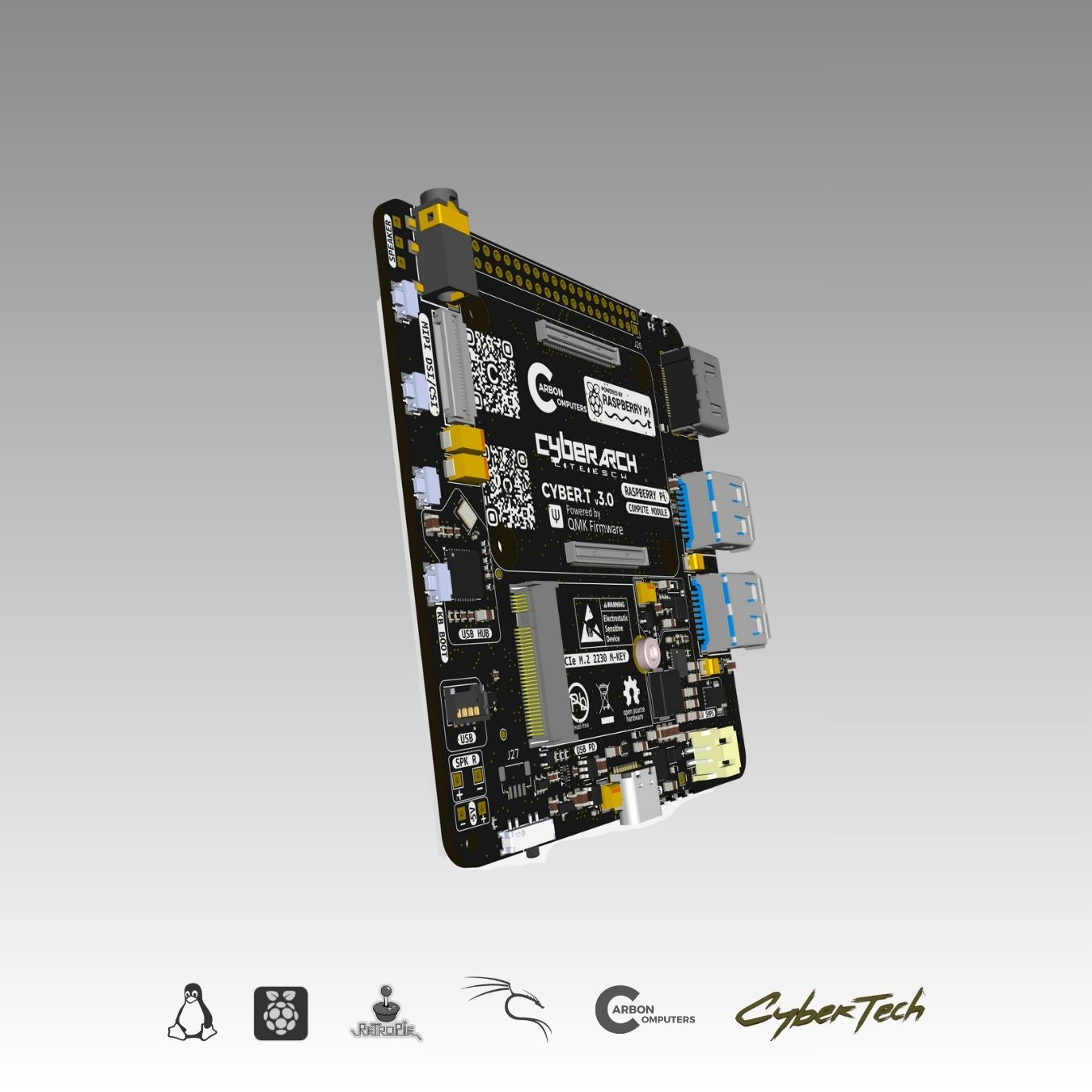

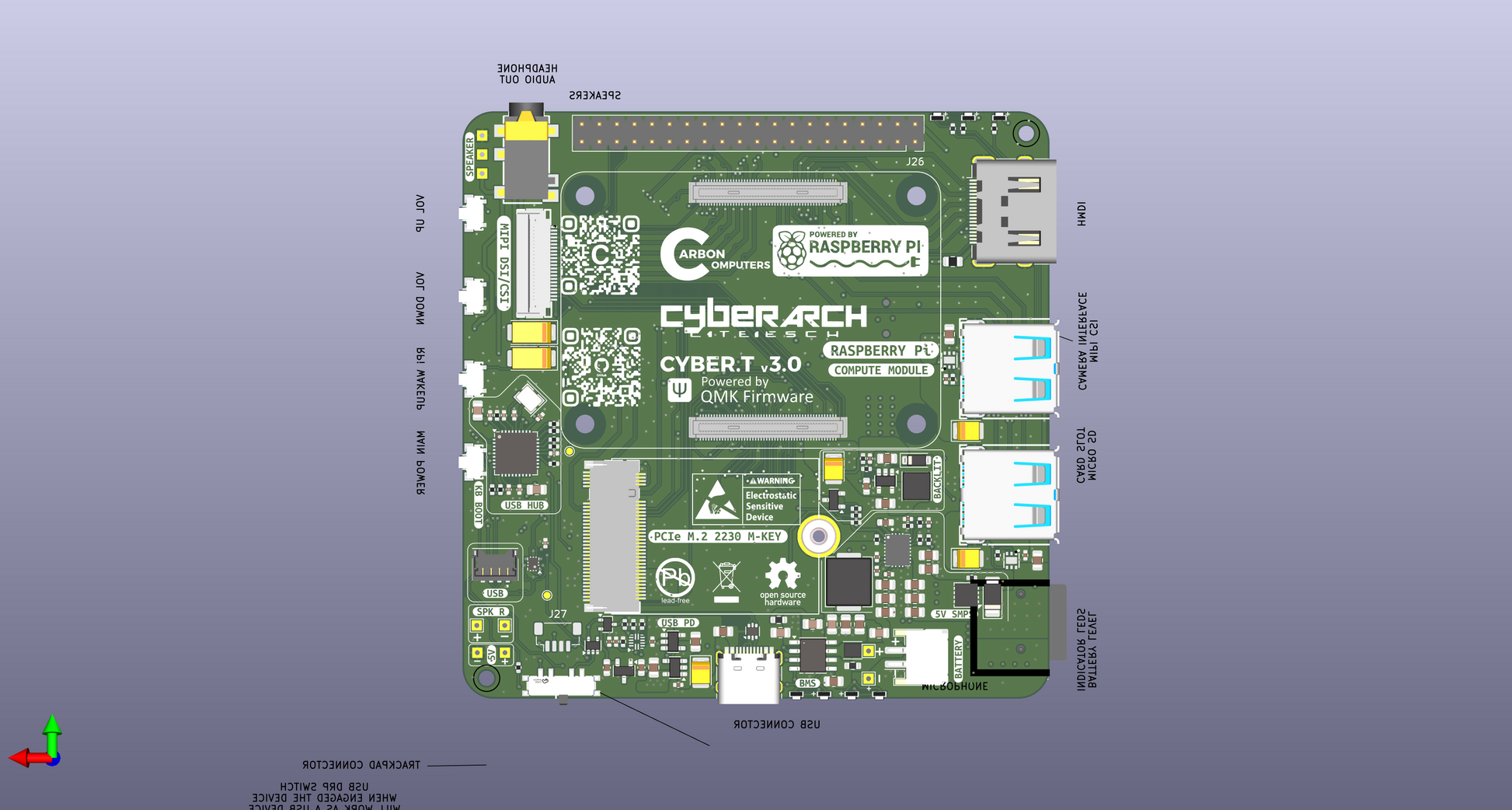

CM5 AIO IO Board – Compact 84×84mm Carrier (Pre-Order Open)

Pre-order Now Open (Est. Shipping Mid-December)

The CM5 AIO IO Board is a powerful, feature-rich carrier board designed for the Raspberry Pi Compute Module 5, offering all the core functionality of the Cybert. handheld—now in a compact and modular 84 × 84 mm form factor.

Perfect for makers, developers, embedded engineers, and system integrators looking to build custom handhelds, cyberdecks, controllers, or IoT devices.

Key Features

🔌 2× USB 3.0 Ports (High-Speed)

Connect peripherals, storage, WiFi adapters, SDR devices, and more with stable 5 Gbps performance.

📶 M.2 Slot (2230/2242)

Supports:

• SATA SSDs

• AI acceleration modules

• LoRa cards

• 4G LTE modems

• Custom expansion modules

🔋 Integrated BMS + Battery Status

Onboard Battery Management System for safe charging & power delivery.
Battery status pads allow LED/indicator integration.

🖥️ Display Support

• DSI Display Connector for native Pi displays

• Optional HDMI support via board variants
  Perfect for custom screens, handheld devices, and embedded UIs.

📸 CSI Camera Port

Attach official Raspberry Pi cameras or third-party CSI modules for vision projects or field imaging.

🎧 Audio Ready

• Onboard stereo amplifier

• Left/Right speaker outputs

• Microphone support depending on configuration
  Ideal for communication tools, portable consoles, or voice-enabled projects.

🧠 Expandable & Maker-Friendly

Featuring:

• 40-pin GPIO Header

• USB pads for internal mods

• Power rails labeled for easy integration

• Internal connectors for keyboards, sensors, and peripherals

• Electrostatic protection zones & labeled vias
  Everything is designed for modders, tinkerers, and embedded developers.

💾 MicroSD Card Slot

Boot or swap Linux distros easily. Perfect for:

• Pi OS

• Ubuntu

• Kali

• Parrot

• Custom embedded systems

SD swapping lets you change OS instantly—great for testing and development.

🔧 Compact 84×84 mm Footprint

Small enough to fit:

• Handheld builds

• Portable terminals

• Robotics

• IoT enclosures

• 3D-printed cyberdeck shells

• Industrial modules

Despite the size, this board packs everything needed for a full Linux workstation.

🛠️ Use Cases

The CyberT. IO Board is perfect for:

• Custom cyberdeck builds

• Portable Linux terminals

• Field diagnostic tools

• Networking devices

• IoT gateways

• Robotics controllers

• Learning platforms

• Manufacturer/integrator product development

📦 What You Need to Complete It

• Raspberry Pi Compute Module 5

• Battery (depending on BMS spec)

• Display (DSI or HDMI version)

• Speaker pair (optional)

• MicroSD card

• M.2 expansion module (optional)

Build Your Own Cyberdeck!

This board delivers all the power of the CyberT. handheld—without the enclosure—giving builders the freedom to create custom tools, devices, and systems with a robust, feature-dense CM5 foundation.
