CyberT. – The Ultimate Raspberry Pi CM4/CM5 Handheld Terminal - Beta

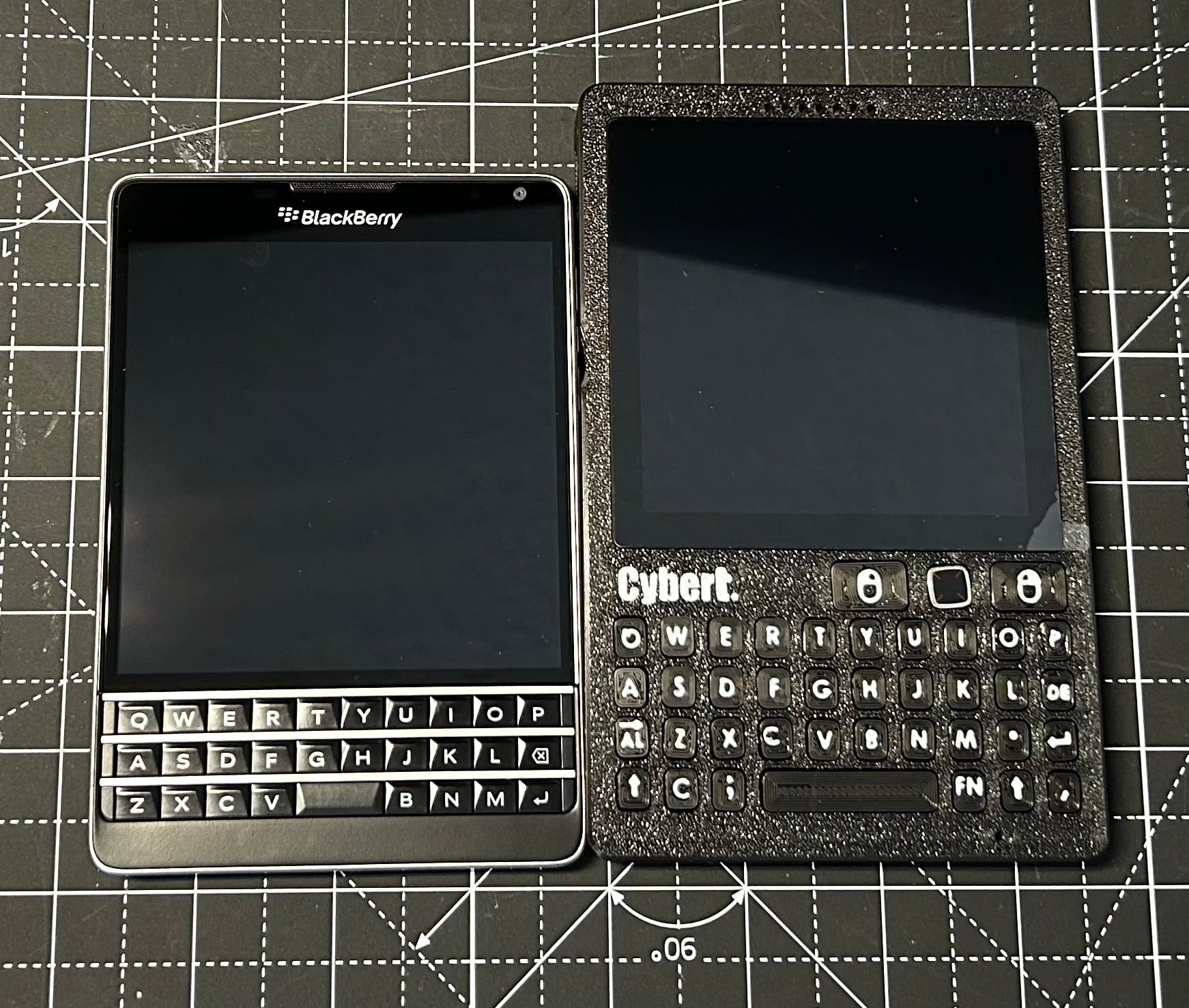

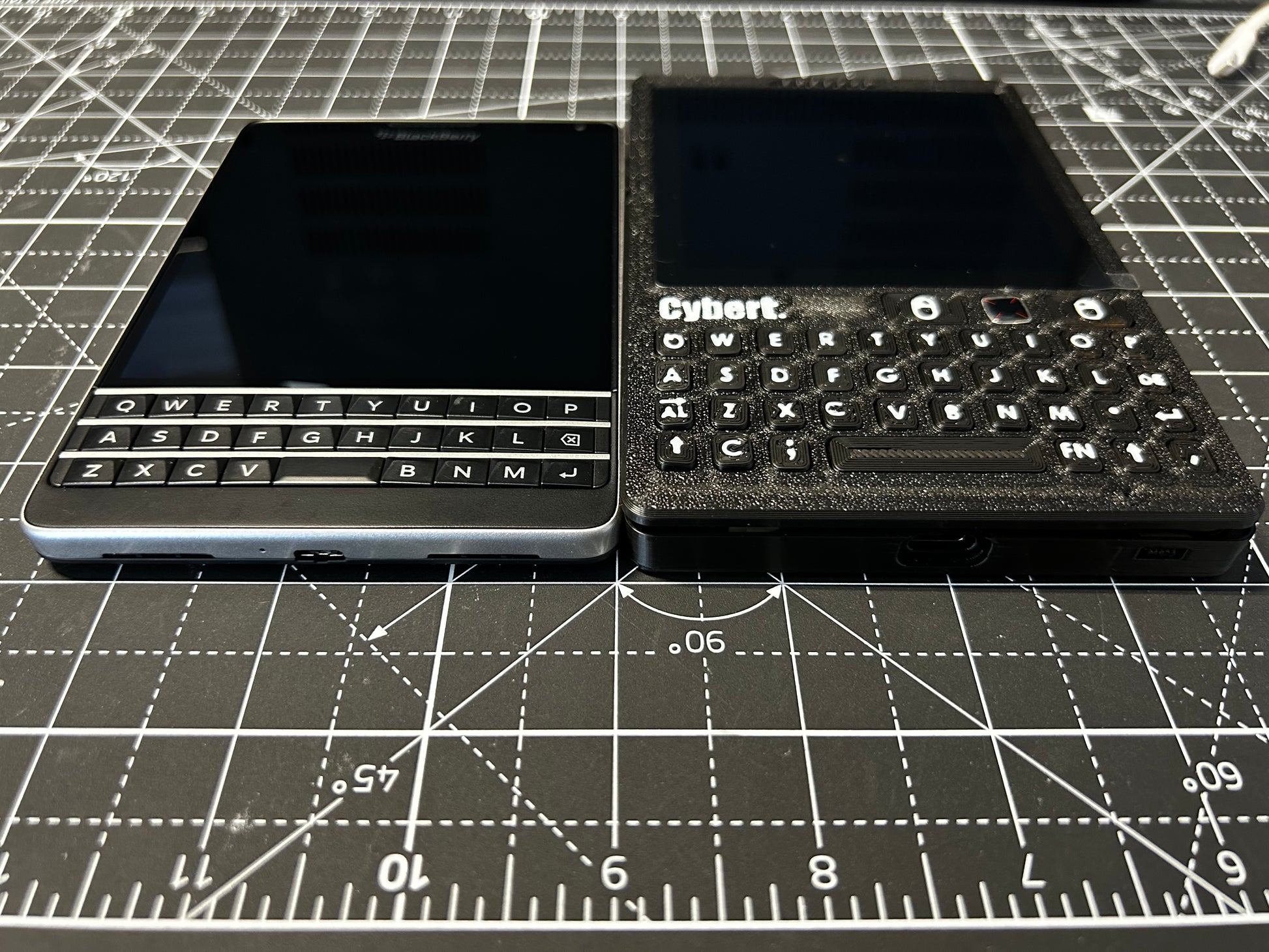

Latest release, beta v2.0 has minor tweaks that enabled the slim screen, and now the new model has a flat, slim front, and there is a new case with a flat back for a slimmer design at about 12 mm thick! As thick as an iPhone with a case. v3 is complete and is undergoing testing, now with 2x USB 3.0 ports M.2 SATA and other improvements.

Funds from this beta will be used to continue the development and testing of the next design with more features.

Note that this is not a fully finished project, and this listing is meant for tinkers, geeks, or people interested in owning something cool, no soldering required to assemble, but some DIY experience will be helpful. The keyboard mapping needs some work/ optimization, simple to program with QMK or VIA.

Unlock the power of portable cybersecurity, development, and Linux computing with CyberT. A custom-built, all-in-one handheld terminal designed for hackers, makers, and tinkerers alike.

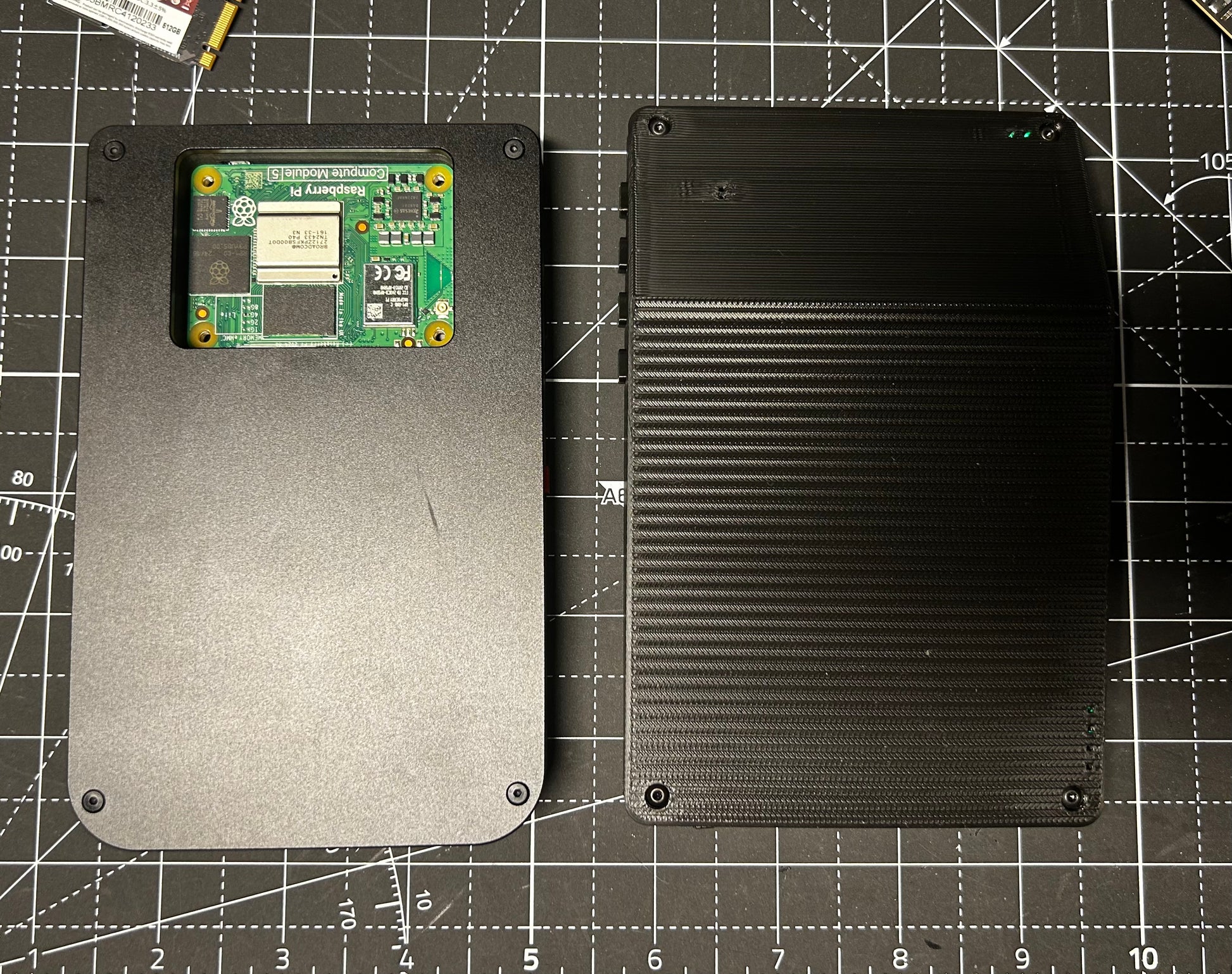

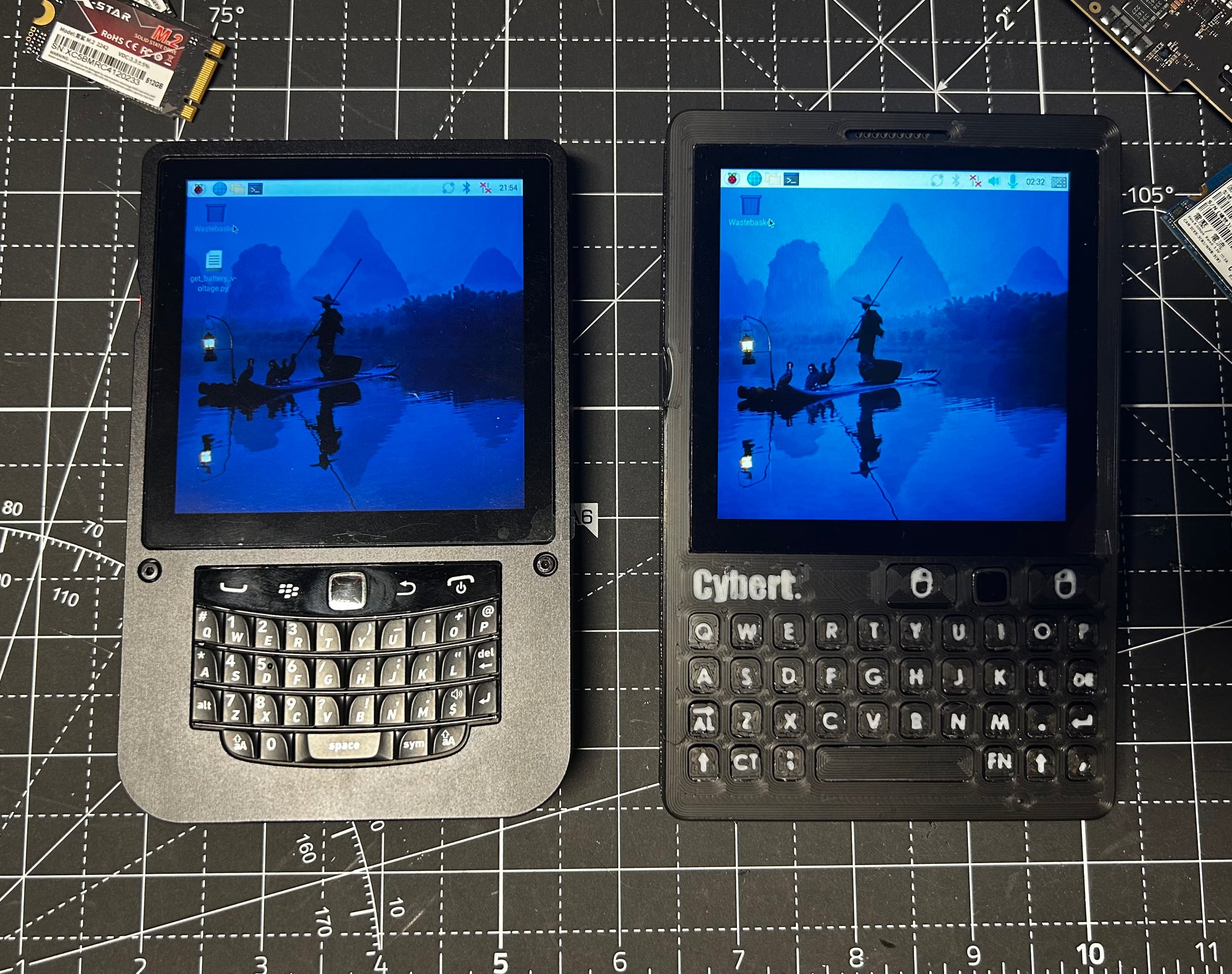

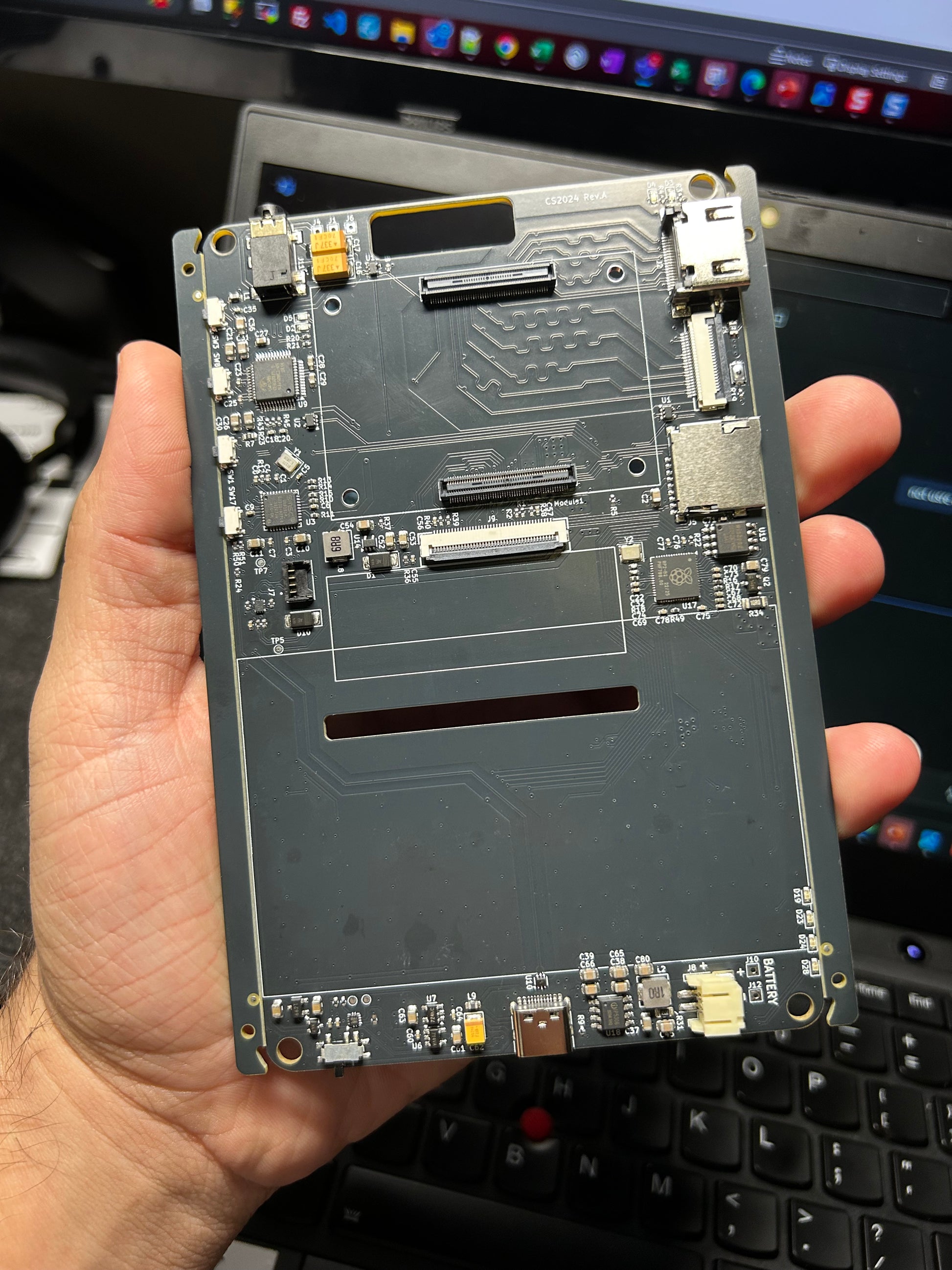

At the heart of Cybert. The Raspberry Pi Compute Module 4 (CM4/CM5 v3.0), seamlessly integrates into a custom PCB packed with thoughtfully designed features to provide a powerful, compact, and intuitive terminal experience. The latest beta 2.0 works with the original design, a very slim display measuring 4" square inches, and a resolution of 720x720 (Adafruit hast the display as well (adafruit.com/product/5794), and we tested and used this one (buydisplay.com/square-3-95-inch-720x720-ips-tft-lcd-display-rgb-interface). The alternative display (for the retro design and v1.0) used this Waveshare display with HDMI, see link and updated photos with the extended front face to fit the thicker display(https://a.co/d/dv6oPja) with a retro design, all files will be published and shared with your purchase, can also be found on the documentation page found on our page footer and here as well.

Read some more about it in the article & find other builds carboncomputers.us/blogs/news/cybert

You can order the system in parts; just add to the cart the parts you need for the full build.

How to order: just add to cart the PCB(includes case) add the CM4/CM5 or skip if you have one. Add the battery and SD card if you need one, and add the assembly service if you want or use the build guide we will publish soon, if missing, contact us for the guide.

🔧 Key Features: Custom QWERTY Keyboard (QMK Powered): Fully programmable and customizable for your workflows and shortcuts.

Built-in Touchpad: BlackBerry touch sensor for efficient pointer navigation—no mouse needed.

Integrated BMS (Battery Management System): Onboard charging and safe power delivery ensure hours of usage.

HDMI Output: Connect to an external display for expanded workspaces.

Micro SD Card Slot: Expandable storage or OS swapping on the fly.

3.5mm Audio Jack + Stereo Speakers: Full audio support for media or communication.

Compact Handheld Form Factor: ideal for fieldwork or on-the-go sessions.

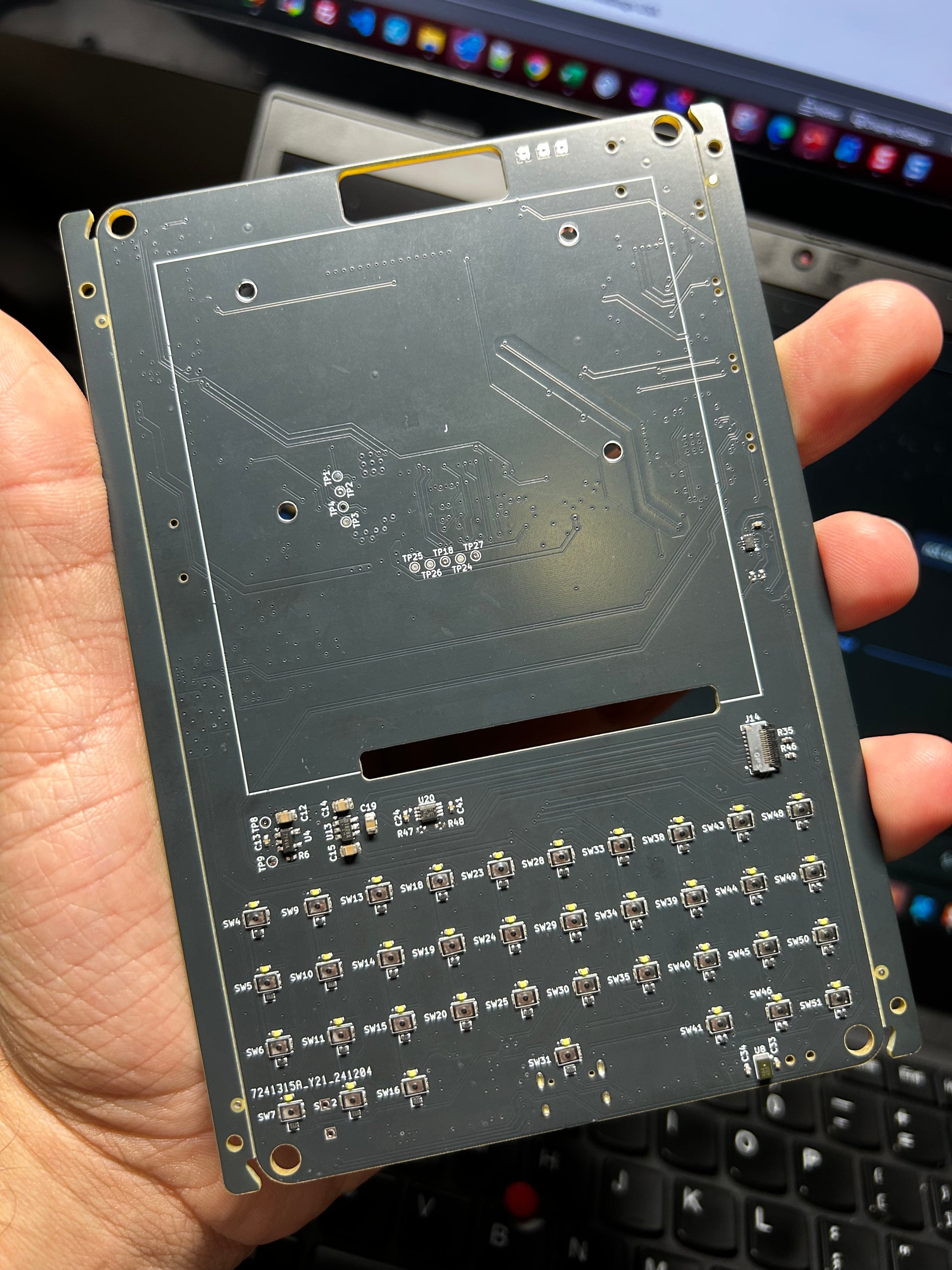

What's included? Custom-built and fully assembled PCB with components and a build guide. The display runs with the HyperPixel driver; see the build guide. QMK configuration for keyboard and touchpad. STL for the 3 cases, one for the slim display and angled back, one slim, and one for the thicker Waveshare 4" square with HDMI.

What do you need? CM4 or CM5, JST LiPo battery, but not necessary since you can power over USB-C power port (note the battery polarity before connecting). Available as 3D STL(print your own) or order the 3D printed case, BlackBerry touch sensor for the cursor, and M2 - 5mm screws. FPC-HDMI and FPC or flat USB-C cable to power the Waveshare display if you opt to use that model, and want touch support.

Parts needed for DIY

• PCB (includes case)
• CM4/CM5
• Display
• Battery
• MicroSD Card
• 4x M2 - 5mm screws
• Slim 4” display Or FPC HDMI & FPC USB-C Cable (for touch support) if you choose the Waveshare HDMI model with retro design

If you have any questions, feel free to contact us.
