Cybert. v3.0- Raspberry Pi CM5 Terminal - Beta (Pre-Order Open)

Cybert. – The Ultimate Raspberry Pi CM5 Handheld Terminal - Beta has been released

This listing is now taking pre-orders, limited run (Shipping expected mid-December)

On this release, beta v3.0, we added more features, such as 2x USB 3.0, USB pads to wire other internal projects. It also features a standard M.2 SATA slot to fit an SSD, AI module, LoRa, or even a 4G LTE module. Additionally, it features stereo speakers, a mic, tactile keys and a backlit keyboard.

Funds and feedback from this beta will be used to continue the development and improvement of the next design with more features. We hope you like it, and we love to hear your feedback.

Note that this is not a fully finished project, and this listing is meant for tinkers, geeks, or people interested in owning something cool, no soldering required to assemble, but some DIY experience will be helpful. The keyboard mapping and configuration can be improved. Simple to program via QMK or VIA.

Unlock the power of portable cybersecurity, development, and Linux computing with Cybert. A custom-built, all-in-one handheld terminal designed for hackers, makers, IT technicians and tinkerers alike.

🔧 Key Features: Custom QWERTY Keyboard (QMK Powered): Fully programmable and customizable for your workflows and shortcuts.

Built-in Touchpad: BlackBerry touch sensor for efficient pointer navigation—no mouse needed.

Integrated BMS (Battery Management System): Onboard charging and safe power delivery ensure hours of usage.

HDMI Output: Connect to an external display for expanded workspaces.

MicroSD Card Slot: Expandable storage or OS swapping on the fly.

3.5mm Audio Jack + Stereo Speakers: Full audio support for media or communication.

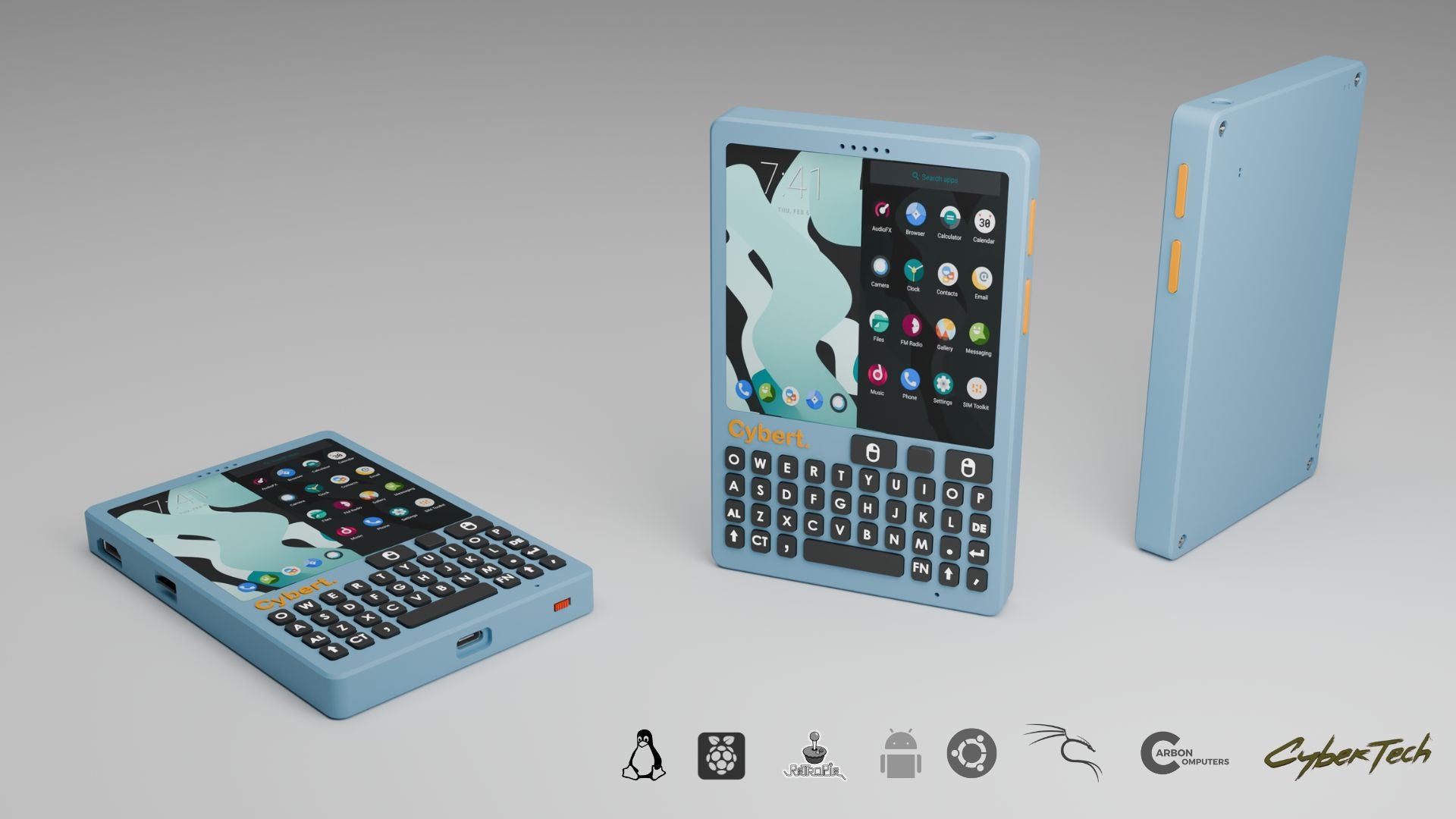

Compact Handheld Form Factor: ideal for fieldwork or on-the-go sessions.

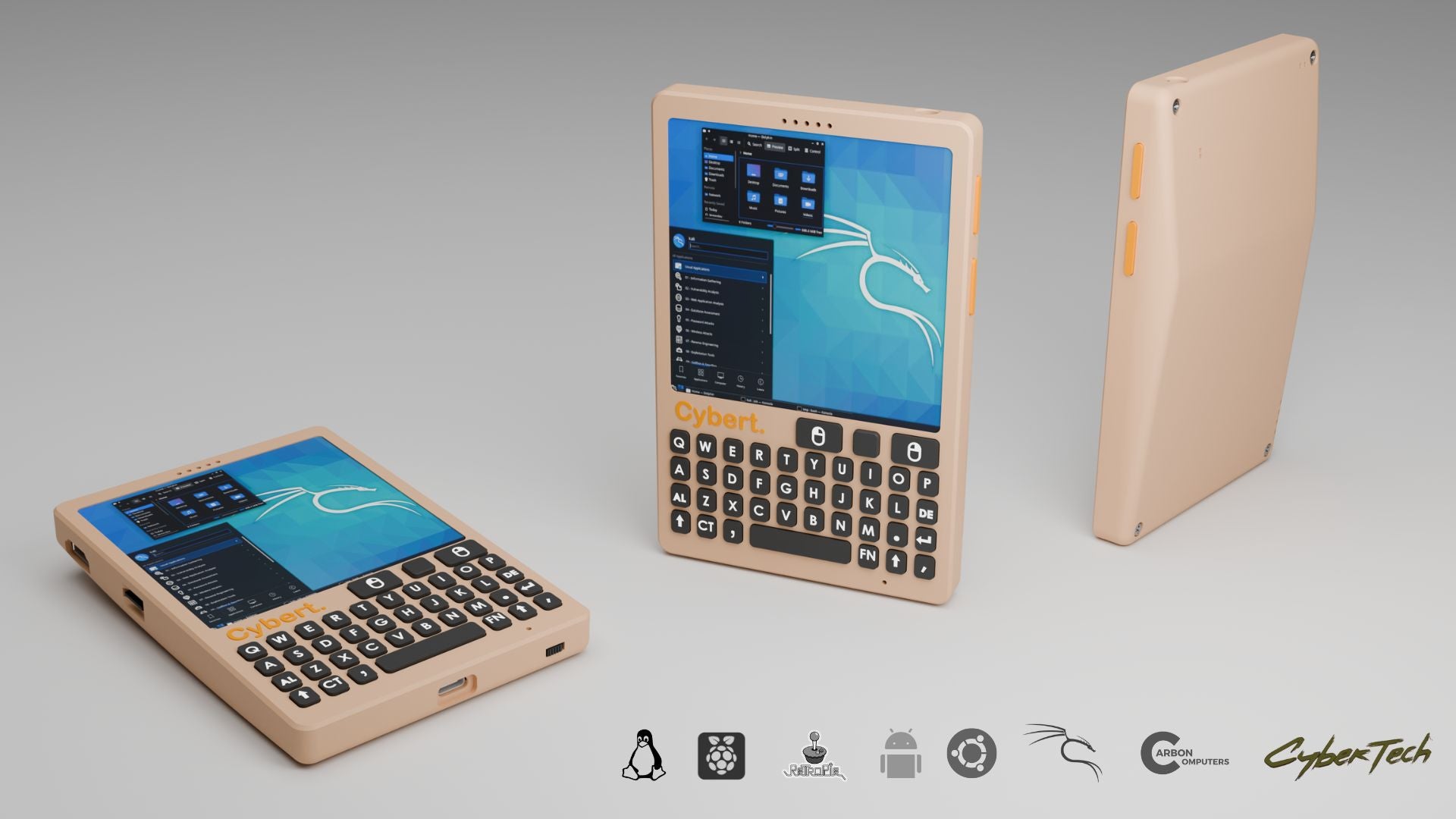

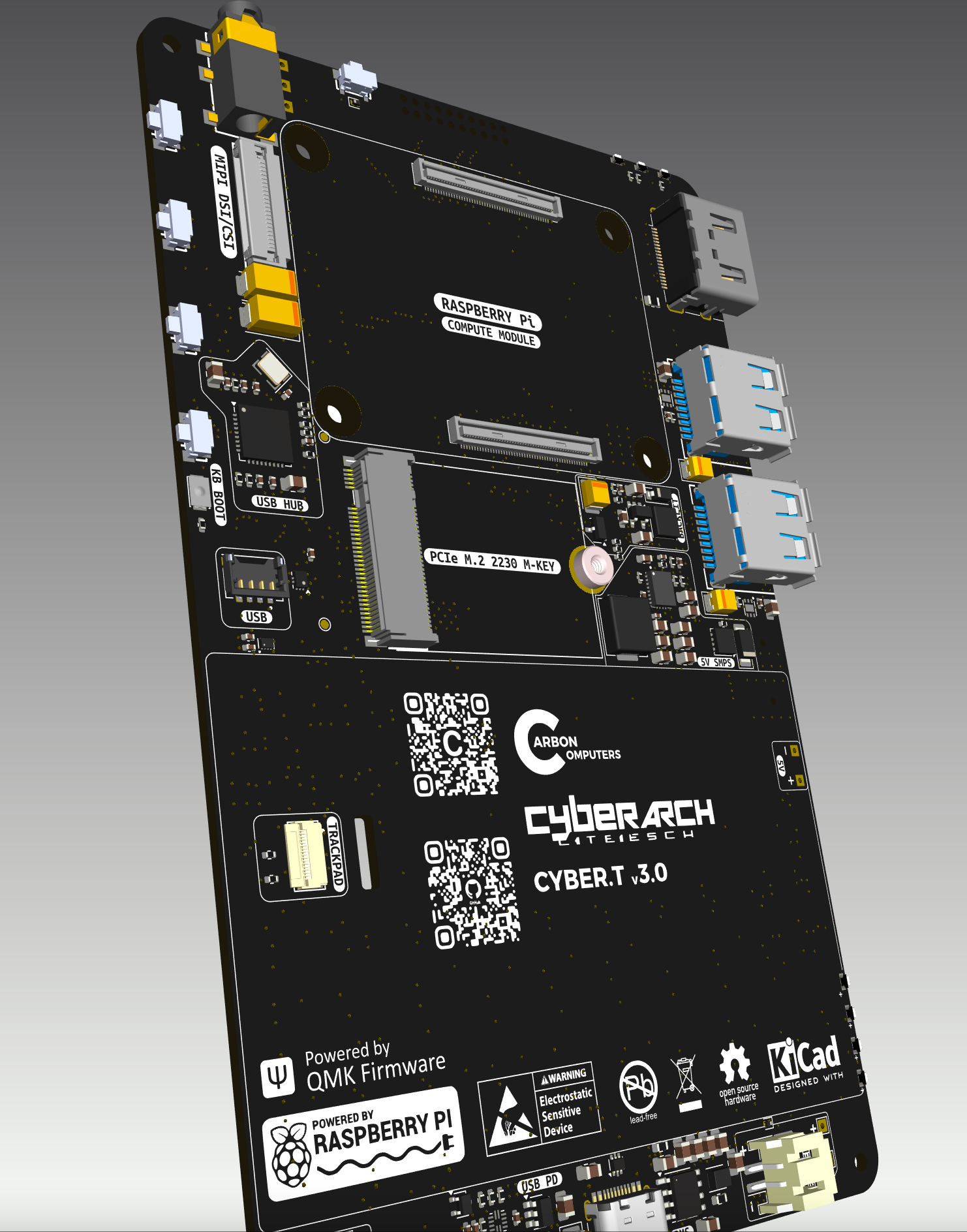

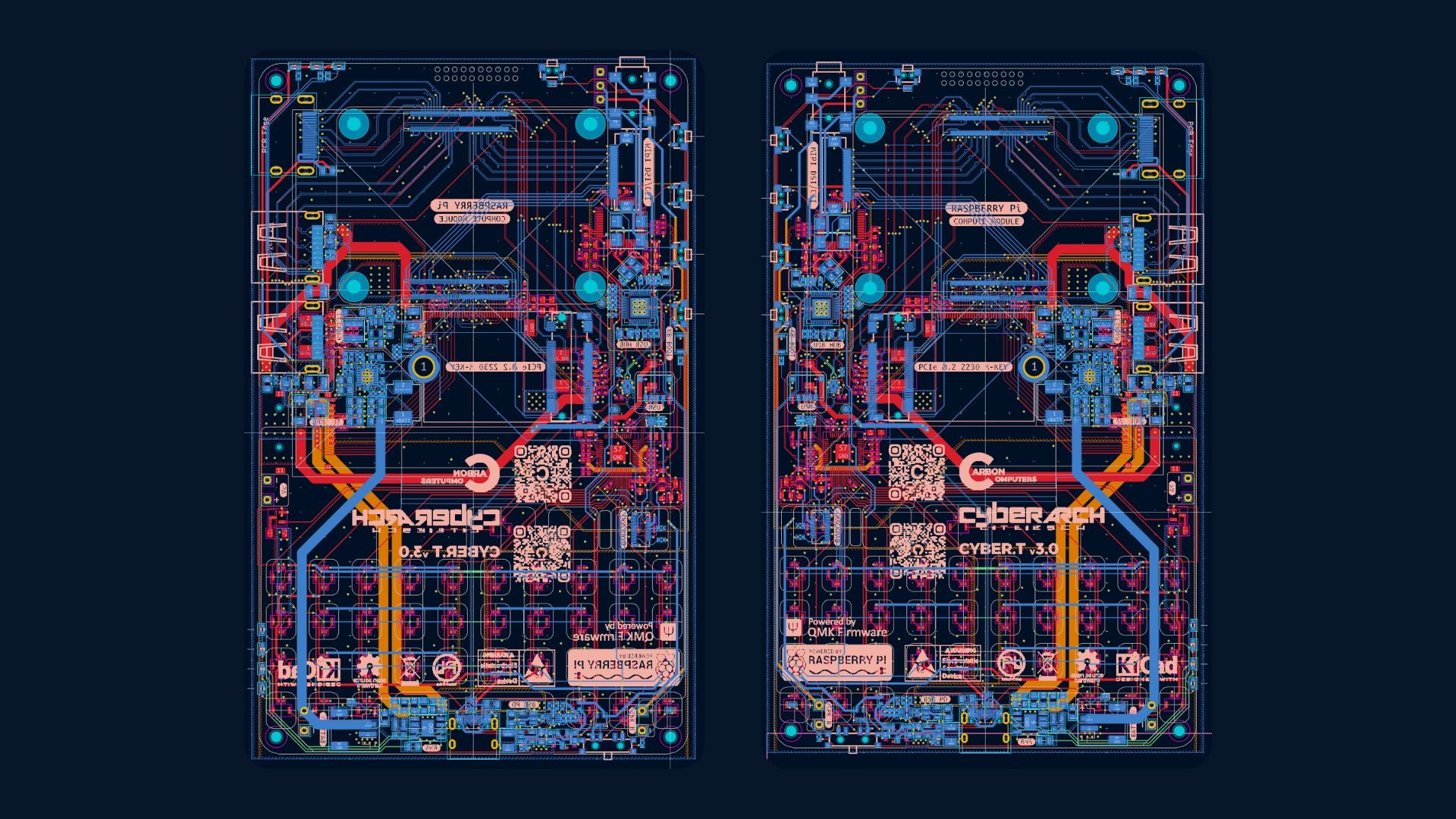

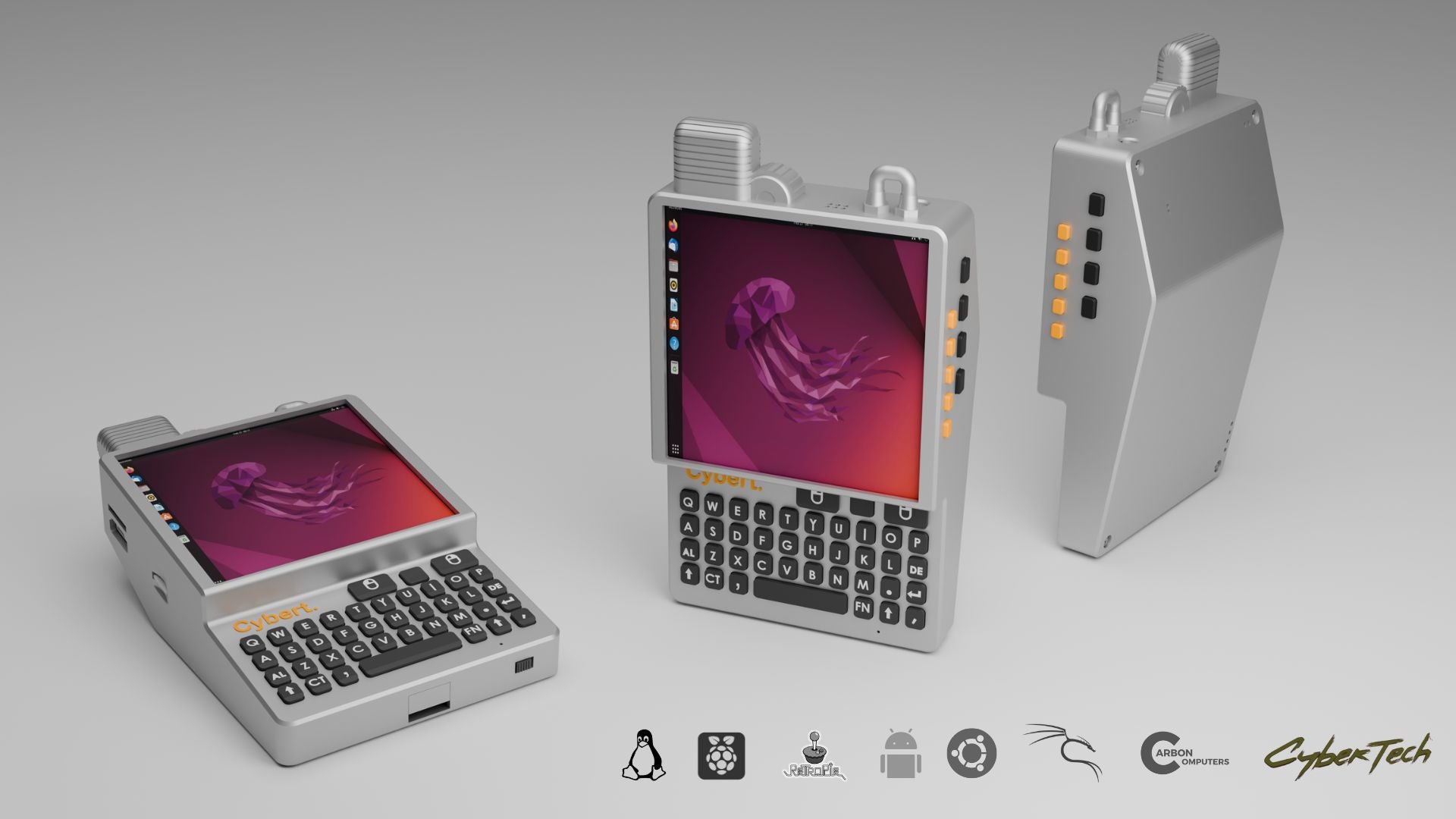

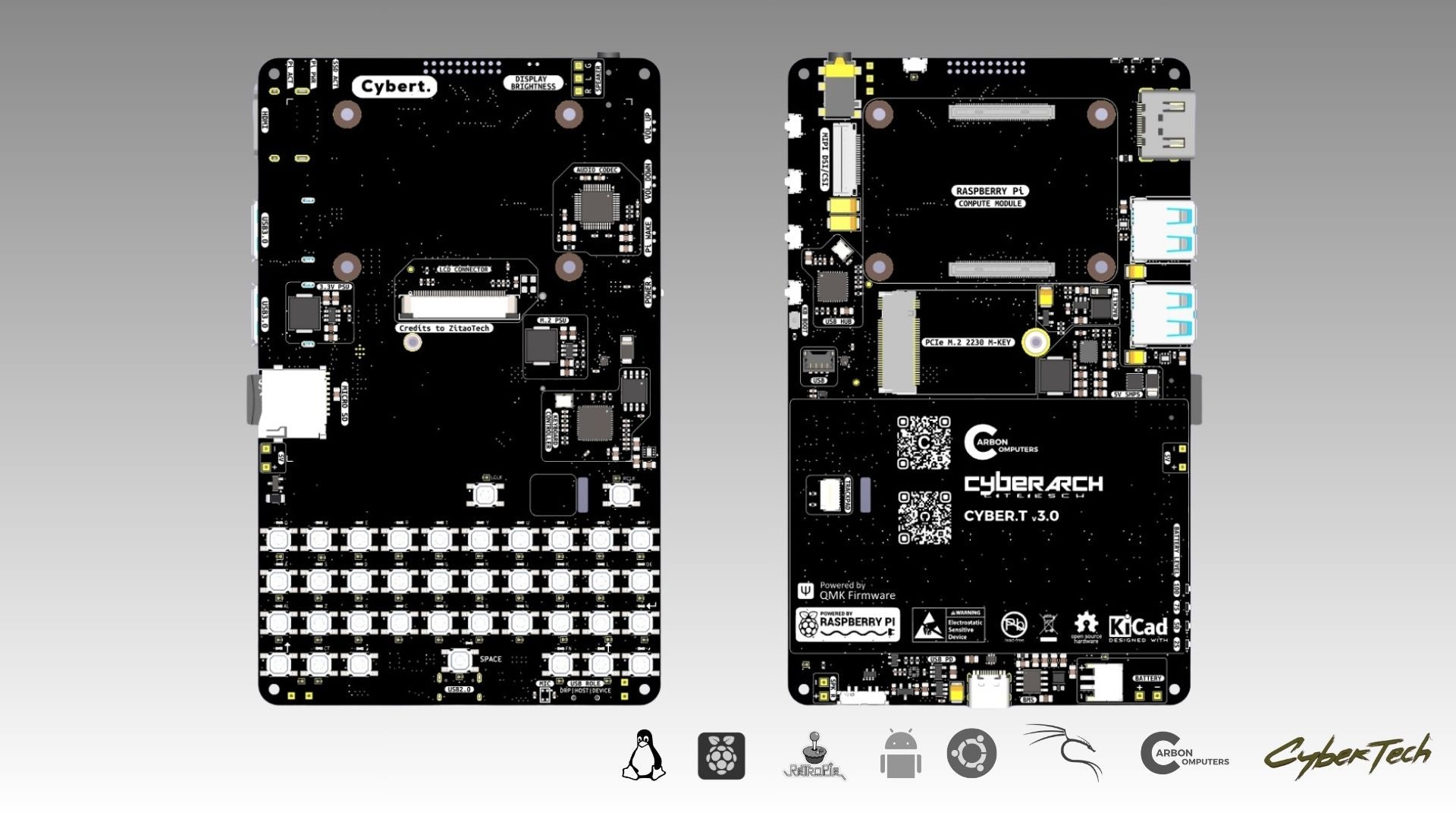

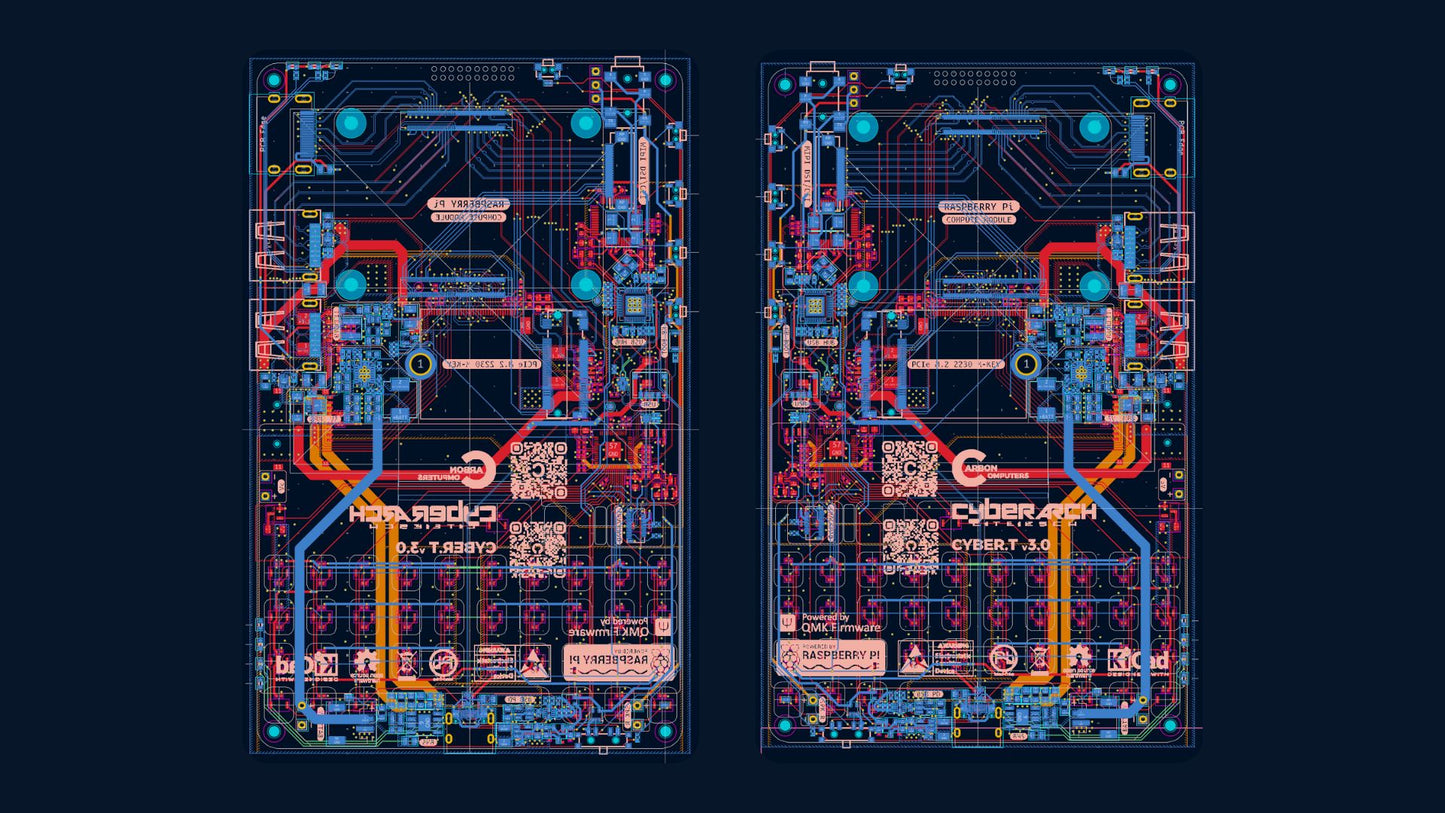

At the heart of Cybert. The Raspberry Pi Compute Module 5 (v3.0) seamlessly integrates into a custom PCB packed with thoughtfully designed features to provide a powerful, compact, and intuitive terminal experience. The unit features a slim display measuring 4" square inches, and a resolution of 720x720 (Adafruit has the display as well (adafruit.com/product/5794). Version 3.0 is also compatible with the alternative display (used for the retro design and v1.0) Waveshare display with HDMI, see link and updated photos with the extended front face to fit the thicker display(https://a.co/d/dv6oPja) with a retro design, all files can be found on the documentation page found on our page footer and here as well.

Read some more about it in the article & find other builds carboncomputers.us/blogs/news/cybert

The default case in your purchase will be the slim case (Leave a note or message us if you want a different one)

How to order: just add to the cart the PCB(includes case)

Parts you will need:

• Display (Adafruit)
• CM5 4GB-16GB (PiShop)
• MicroSD Card (PiShop)
• LiPo JST Battery 3,000-5,000 mAh(Amazon)
• BlackBerry 9900 Touch Sensor (Cellspare)
• 4x M2 - 5mm screws (Amazon)

If you have any questions, feel free to contact us.
